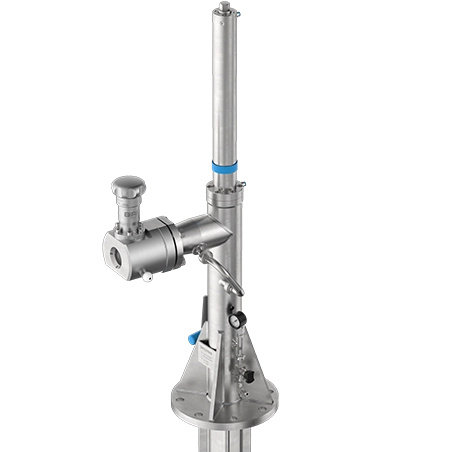

Actiflow

  • Hastelloy top of reactor sampling system
  • From the top
  • With cannula and multiple options
  • Pneumo-magnetic
Material1.4404 / 316L
PressuresPN 6 / 16ANSI 150# / 300#
Temperatures-80°C / 200°C-112°F / 392°F

The Actiflow is the ultimate sampling system for complex reactor sampling points, offering easy and safe operation. Its exceptional modularity is matched by its ease of use. Made from Hastelloy, it can be fitted with temperature or pH controls, a heating jacket, a counter-agitation device or a nitrogen rinsing system. Its magneto-pneumatic drive guarantees a continuous flow of product, ensuring absolutely reliability during sampling. Thanks to its integrated cannula, it excels at sampling viscous liquids up to 2000 cP  with a pressure range from -1 to 16 bar and temperatures varying from -40°C to +200°C in its standard version, and from -80°C to +200°C in its low-temperature design. It is easily cleaned from the top of the piston. ATEX certified, it operates at the touch of a button, making it extremely safe and intuitive to use.

TECHNICAL SPECIFICATIONS

Indicative drawing of an Actfiflow top of reactor sampling system with counter agitator featuring a sampling valve fitted with fitted with a VMB magic handwheel actuator

Dimensions in mm
Your specificities
Standard
  • DIN
  • ANSI
Class
  • 16
  • 150
NrArticleDNDip TubePNl1h1h2d1Temp.°C Kg
05195700≥ DN1001m(min)-4m(max)16284114248389-40 - +200°C (i)[80 kg, 90 kg]
NrArticleNPSDip TubePNl1h1h2d1Temp.°C Kg
05195700≥ 4''1m(min)-4m(max)16284114248389-40 - +200°C (i)[80 kg, 90 kg]
Pressures and temperatures
TS °C -40°/+200°
PS bar -1 /16
TS °F -40°/392°
PS psi14/232

The sampling valve on each Actiflow top of reactor sampling system can be configured according to production and sampling requirements.

Possible sealings for the valve section of an Optiflow sampling system

The sampling valve sealing on the Optiflow sampling system are modular

Standard Stem Gasket

Simple stuffing box

HP Stem Gasket

Double Stuffing Box

Stellite Stem Gasket

Bellows Seal

Material

Optiflow comes in various material options including Hastelloy®

1.4404 / 316L2.4602 / C22

Possible actuators for the Actiflow sampling valve

The sampling valve actuators on each Actiflow can be modulated according to requirements

Magic Hand Wheel - VMB

Pneumatic actuator - CPB

Spring to Close hand lever - RPS

Cooling fins

Vent hole principle for the sampling valve

The vent hole of the sampling valve prevents overpressure in the bottle and its explosion

Il peut être connecté de différentes manières

Vent hole principle

The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.

Accessoires

The Actiflow sampling valve is compatible with a large number of accessories

FAB adapter

Splash guard adapter FAD

Bottles

Adjustable plate support SAB

SCB bottle holder

Bottle heat protection

Heat protection box BPB

Heat protection box BPI

Safety cabinets

Needle adapter ACB - ACY

Revo cabinet RAI

Piston injectors

Safety plugs
