PLI
- PFA lined Inline sampling valve
- With flanges
- Horizontal assembly
- Multifonctional

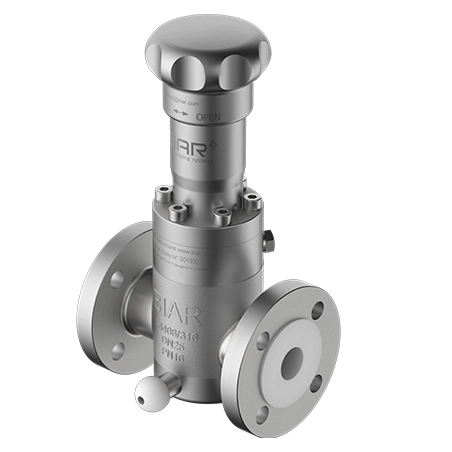

The PFA-lined PLI sampling valve for horizontal or vertical lines enables representative sampling to be carried out easily and safely without interrupting manufacturing processes. Suitable for highly corrosive chemicals, its one-piece design reduces dead zones and ensures a perfect sealing. Initially manufactured in stainless steel with a pure PFA coating, it is also available in antistatic PFA to meet specific requirements. Its unique quick connection system makes it possible to use different bottles and accessories without changing the sampling system. It facilitates management while limiting costs. Based on a modular concept (spindles, actuators), the PLI sampling system, also known as PRISEMASSON®, can be adapted to meet a wide range of needs and requirements. This sampling system offers significant advantages in terms of performance and cost.
TECHNICAL DETAILS OF AN PLI INLINE SAMPLING VALVE
Illustrative drawing of a standard PLI sampling valve, without additional options, featuring the VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 150
| NrArticle | DN | L | h1 | h2 | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 02655100 | 15 | 130 | 75 | 19 | 15 | 95 | 65 | 4x14 | 7.3 | https://a360.co/3sTbb5j | |
| 04791100 | 20 | 150 | 81 | 26.5 | 20 | 105 | 75 | 4x14 | 8.5 | ||
| 02301700 | 25 | 160 | 85 | 32 | 25 | 115 | 85 | 4x14 | 9.1 | https://a360.co/3R6mkYu | |
| 02740400 | 40 | 200 | 103 | 32 | 40 | 150 | 110 | 4x18 | 11.9 | https://a360.co/3Gt98YA | |
| 02301800 | 50 | 230 | 110 | 37.5 | 50 | 165 | 125 | 4x18 | 14 | https://a360.co/4a63rgJ | |
| 02881600 | 80 | 203 | 128 | 52 | 80 | 200 | 160 | 8x18 | 19.5 | https://a360.co/4aiEi2P | |
| 00473306 | 100 | 229 | 142 | 64.5 | 100 | 220 | 180 | 8x18 | 23.5 |
| NrArticle | NPS | L | h1 | h2 | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 02638000 | 3/4 | 130 | 75 | 19 | 15 | 89 | 60.5 | 4x15.9 | 7.3 | https://a360.co/3NeyyNr | |
| xxxxxxxx | 1/2 | 127 | 81 | 24.7 | 20 | 98 | 69.8 | 4x15.7 | 8. 5 | ||
| 02559500 | 1 | 127 | 85 | 25 | 25 | 108 | 79.2 | 4x15.7 | 9.1 | https://a360.co/46KDzV1 | |
| 04442200 | 1 1/2 | 165 | 103 | 32 | 40 | 127 | 98.6 | 4x15.7 | 11.9 | https://a360.co/3TaijoC | |
| 00403005 | 2 | 178 | 110 | 37.5 | 50 | 152 | 120.7 | 4x19.1 | 14 | https://a360.co/3Rsfywr | |
| 00403704 | 3 | 203 | 128 | 52 | 80 | 190 | 152.4 | 4x19.1 | 19.5 | ||
| 04403800 | 4 | 229 | 142 | 64.5 | 100 | 229 | 190.5 | 8x19.1 | 23.5 | https://a360.co/46Ldrcm |
| TS (°C) | -20 | 0 | 100 | 150 | 180 max |
|---|---|---|---|---|---|
| PN16 (bar) | 16 | 16 | 14.2 | 12.5 | 11.5 |
| °F | (°C) | -4 | (-20) | 32 | (0) | 212 | (100) | 302 | (150) | 370 | (180)max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# | psi (bar) | 230 | (15.9) | 230 | (15.9) | 195 | (15.3) | 175 | (12) | 166 (11.5) |
Each PFA lined PLI Inline sampling valve can be configured according to production specifications and sampling parameters.
Sealings possibilities
The PLI sampling valves can be equipped with different types of sealing
Stem Gasket PFA
PLI body can be designed in various alloys and PFA
In its standard version, the PLI sampling valves are made from Inox 316L and stainless steel. The lining is done in PFA or PFA antistatic.

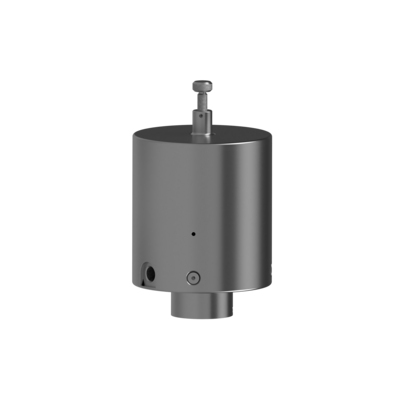

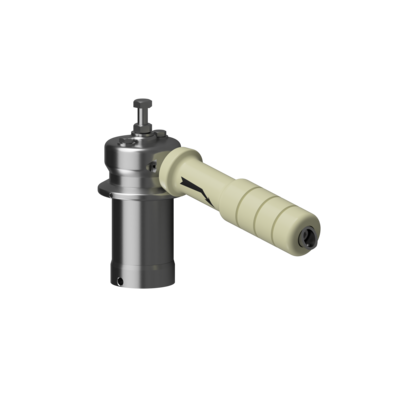

Actuator options for the PE-EB sampling system PLI sampling valves can be configured with different drives
PLI sampling valves can be configured with different drives
Vent hole principle
The venting hole fitted to each PLI sampling valve prevents overpressure and explosions.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the PLI samplers can be configured with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
ACCESSORIES DESIGNED FOR THE PLI INLINE SAMPLING VALVE
PLI Inline samplers are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
