EBP
- PFA lined Inline sampling valve
- Wafer type
- Horizontal assembly
- Multifonctional
The PFA-lined EBP sampling valve without flange, specifically designed for horizontal lines, offers a practical and safe solution for representative sampling of highly corrosive chemicals. Its one-piece design reduces dead zones and ensures a perfect sealing. The wafer design without flange of this sampler reduces pressure losses and space requirements. Initially manufactured in stainless steel with a pure PFA coating, it is also available in antistatic PFA to meet specific requirements. Its ingenious quick connection system makes it possible to use different bottles and accessories without changing the sampling system. It facilitates management while limiting costs. Based on a modular concept (materials, spindles, actuators), the EBP sampling system, also known as PRISEMASSON®, can be adapted to suit different needs and requirements. This sampling system offers significant advantages in terms of performance and cost.
TECHNICAL DETAILS OF AN EBP INLINE SAMPLING VALVE

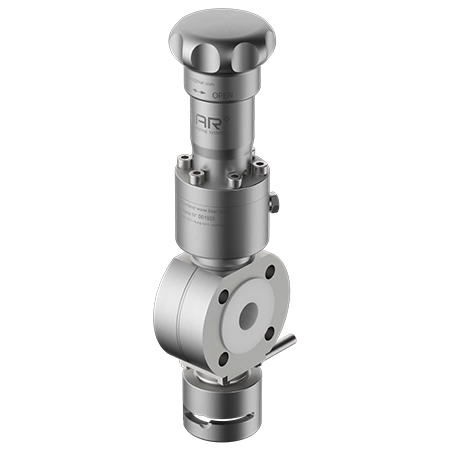

Illustrative drawing of a standard EBP sampling valve, without additional options, featuring the VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 150
| NrArticle | DN | h1 | h2 | d1 | D | d2 | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| 00847604 | 25 | 113 | 118 | 25 | 115 | 26 | 85 | 4x13 | 7.8 |
| 00847702 | 50 | 131.5 | 133 | 50 | 165 | 26 | 125 | 4x18 | 10.8 |
| NrArticle | DN | h1 | h2 | d1 | D | d2 | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| 02840200 | 1 | 99.5 | 118 | 25 | 115 | 26 | 79.2 | 4x15 | 7.8 |
| 03005400 | 2 | 131.5 | 146.5 | 50 | 165 | 26 | 120.7 | 4x19 | 10.8 |
| TS (°C) | -20 | 0 | 100 | 150 | 180 max |
|---|---|---|---|---|---|
| PN16 (bar) | 16 | 16 | 14.2 | 12.5 | 11.5 |
| °F | (°C) | -4 | (-20) | 32 | (0) | 212 | (100) | 302 | (150) | 370 | (180)max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# | psi (bar) | 230 | (15.9) | 230 | (15.9) | 195 | (15.3) | 175 | (12) | 166 (11.5) |
Each PFA lined EBP Inline sampling valve can be configured according to production specifications and sampling parameters.
SEALINGS POSSIBILITIES
The EBP sampling valves can be equipped with different types of sealing

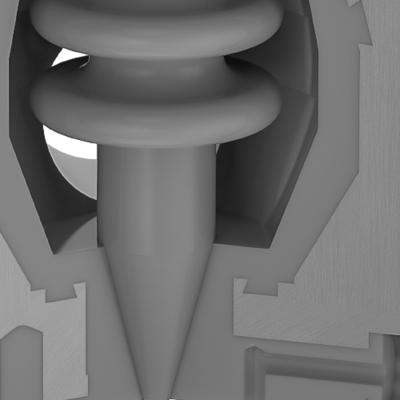

Stem Gasket PFA
EBP BODY CAN BE DESIGNED IN VARIOUS ALLOYS AND PFA
In its standard version, the EBP sampling valves are made from Inox 316L and stainless steel. The lining is done in PFA or PFA antistatic
Vent hole principle
The venting hole fitted to each EBP sampling valve prevents overpressure and explosions.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the EBP samplers can be configured with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option

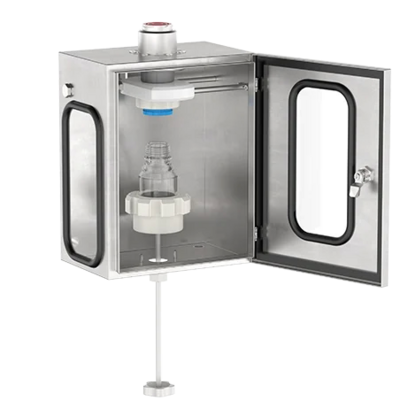

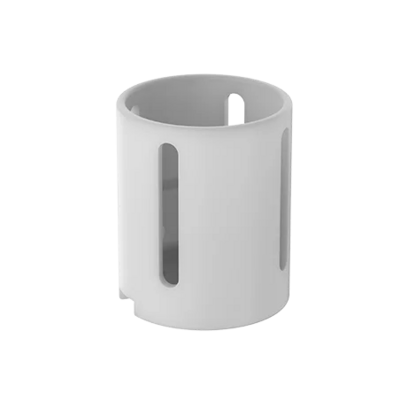

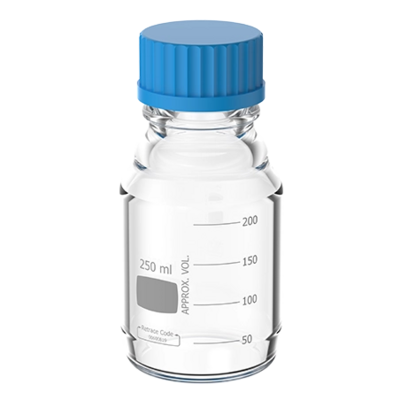

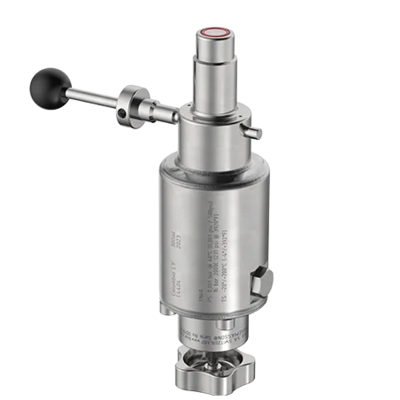

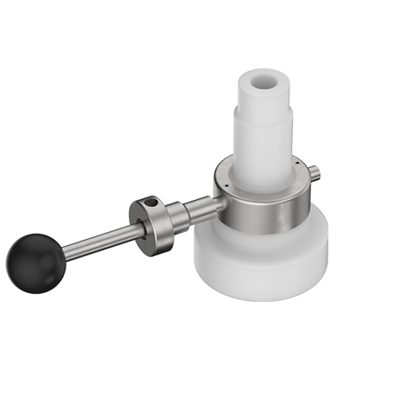

ACCESSORIES DESIGNED FOR THE EBP INLINE SAMPLING VALVES
EBP In-line samplers are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
