MLB
- Inline sampling valve
- With flanges
- Horizontal assembly
- Multifunctional

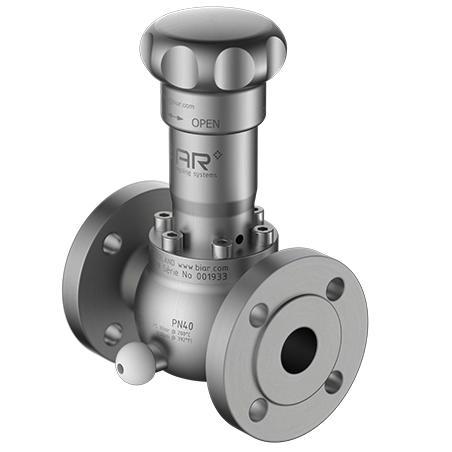

Designed for horizontal or vertical assembly, the MLB spindle sampling valve offers a reliable and convenient solution for representative sampling without interrupting production processes. Initially manufactured in stainless steel with a PTFE seal, it is also available in other alloys and seals, depending on specific requirements. In chemical and petrochemical plants, the MLB sampler ensures safety when sampling hazardous and toxic liquids such as halogens, Grignard reagents, alkylating agents and concentrated acids. Its unique quick-connect system means that different bottles and accessories can be used without changing samplers, simplifying management while keeping costs under control. Based on a modular concept (materials, sealings, actuators, connections), the MLB sampler, also known as PRISEMASSON®, can be adapted to suit different needs and requirements.
TECHNICAL DETAILS
Indicative drawing of a standard MLB sampling valve without option equipped with VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 40
- 150
- 300
| NrArticle | DN | L | h1 | s | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01422601 | 15 | 160 | 27 | 2 | 17.3 | 95 | 65 | 4x14 | 6.5 | https://a360.co/3FYjuPQ | |
| 00631903 | 20 | 160 | 29 | 2.3 | 22.3 | 105 | 75 | 4x14 | 7.3 | https://a360.co/3SJw6lO | |
| 00669103 | 25 | 160 | 32 | 2.6 | 28.5 | 115 | 85 | 4x14 | 7.9 | https://a360.co/46gib9C | |
| 00417602 | 32 | 180 | 37 | 2.6 | 37.2 | 140 | 100 | 4x18 | 9.4 | https://a360.co/47fzn0k | |
| 04406700 | 40 | 200 | 40 | 2.6 | 44.3 | 150 | 110 | 4x18 | 10.2 | https://a360.co/3MLk4EF | |
| 00531105 | 50 | 230 | 45 | 2.6 | 55.1 | 165 | 125 | 4x18 | 11.6 | https://a360.co/3uorPK7 | |
| 02192400 | 65 | 290 | 53 | 2.6 | 70.9 | 185 | 145 | 8(4)x18 | 13.9 | https://a360.co/3QVurbj | |
| 01871300 | 80 | 310 | 59 | 2.6 | 83.7 | 200 | 160 | 8x18 | 16.3 | https://a360.co/3MKGRjE | |
| 00419003 | 100 | 350 | 72 | 2.6 | 109.1 | 220 | 180 | 8x18 | 18.8 | https://a360.co/3uorxD1 | |
| 03096800 | 150 | 480 | 101 | 3 | 162.3 | 285 | 240 | 8x22 | 28.7 | https://a360.co/47wCLnw |
| NrArticle | DN | L | h1 | s | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01422601 | 15 | 160 | 27 | 2 | 17.3 | 95 | 65 | 4 x 14 | 6.5 | https://a360.co/49EmFtA | |
| 00631903 | 20 | 160 | 29 | 2.3 | 22.3 | 105 | 75 | 4 x 14 | 7.3 | https://a360.co/3R0xTSc | |
| 00669103 | 25 | 160 | 32 | 2.6 | 28.5 | 115 | 85 | 4 x 14 | 7.9 | https://a360.co/47hcf1M | |
| 00417602 | 32 | 180 | 37 | 2.6 | 37.2 | 140 | 100 | 4 x 18 | 9.4 | https://a360.co/478UZeS | |
| 01494001 | 40 | 200 | 40 | 2.6 | 44.3 | 150 | 110 | 4 x 18 | 10.2 | https://a360.co/3QXBWi4 | |
| 00552403 | 50 | 230 | 45 | 2.6 | 55.1 | 165 | 125 | 4 x 18 | 11.6 | https://a360.co/47AnDoW | |
| 02285600 | 65 | 290 | 53 | 2.6 | 70.9 | 185 | 145 | 8 x 18 | 15.3 | https://a360.co/3SEpsNp | |
| 00646401 | 80 | 310 | 59 | 2.6 | 83.7 | 200 | 160 | 8 x 18 | 17.7 | https://a360.co/3uhatPw | |
| 02221000 | 100 | 350 | 72 | 3.6 | 107.1 | 235 | 190 | 8 x 22 | 23 | https://a360.co/46kcOq2 | |
| 04051600 | 150 | 480 | 95 | 4.5 | 159.3 | 300 | 250 | 8 x 26 | 40 |
| NrArticle | NPS | L | h1 | s | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 00881903 | 1/2 | 160 | 27 | 2 | 17.3 | 89 | 60.5 | 4 x 15.9 | 6 | https://a360.co/49Fw3NG | |
| 00392201 | 3/4 | 160 | 29 | 2.3 | 22.3 | 98 | 69.9 | 4 x 15.9 | 6.4 | https://a360.co/3QDNu8L | |
| 00538703 | 1 | 160 | 32 | 2.6 | 28.5 | 108 | 79.2 | 4 x 15.9 | 7.1 | https://a360.co/47bHVp9 | |
| 00418202 | 1 1/2 | 165 | 40 | 2.6 | 43.1 | 127 | 98.6 | 4 x 15.9 | 8.9 | https://a360.co/3swKD9J | |
| 00412404 | 2 | 178 | 45 | 2.9 | 54.5 | 152 | 120.6 | 4 x 19.1 | 10.5 | https://a360.co/3FYdjLM | |
| 01055201 | 2 1/2 | 190 | 53 | 2.9 | 70.3 | 178 | 139.7 | 4 x 19.1 | 14.7 | https://a360.co/47yahJV | |
| 00352002 | 3 | 203 | 59 | 3.2 | 82.5 | 190 | 152.4 | 4 x 19.1 | 17 | https://a360.co/47yan4f | |
| 00419202 | 4 | 229 | 72 | 3.6 | 107.1 | 229 | 190.5 | 8 x 19.1 | 22 | https://a360.co/46aATzG | |
| 00679201 | 6 | 267 | 98 | 4.6 | 154.8 | 279 | 241.3 | 8 x 22.2 | 33.6 | https://a360.co/3MLTATj |
| NrArticle | NPS | L | h1 | s | d1 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 01348101 | 1/2 | 160 | 27 | 2 | 17.3 | 95 | 66.5 | 4 x 15.9 | 6.4 | https://a360.co/3G0RBXu | |
| 01094601 | 3/4 | 160 | 29 | 2.3 | 22.3 | 117 | 82.6 | 4 x 19.1 | 7.4 | https://a360.co/3SDh2pJ | |
| 01559200 | 1 | 160 | 32 | 2.6 | 28.5 | 124 | 88.9 | 4 x 19.1 | 8.1 | https://a360.co/47fFh1t | |
| 01295201 | 1 1/2 | 165 | 40 | 2.6 | 43.1 | 156 | 114.3 | 4 x 22.2 | 11.2 | https://a360.co/3QE5YWE | |
| 01985400 | 2 | 178 | 45 | 2.9 | 54.5 | 165 | 127 | 8 x 19.1 | 12 | https://a360.co/46fbOU8 | |
| 05184800 | 2 1/2 | 190 | 53 | 2.9 | 70.3 | 190 | 149.4 | 8 x 22.2 | 14.6 | ||
| 02226400 | 3 | 203 | 59 | 3.2 | 82.5 | 210 | 168.1 | 8 x 22.2 | 20.8 | https://a360.co/3QXGnJI | |
| 01563600 | 4 | 229 | 72 | 3.6 | 107.1 | 254 | 200.2 | 8 x 22.2 | 29.5 | https://a360.co/3QYZXFh | |
| 00679201 | 6 | 267 | 98 | 4.6 | 154.8 | 318 | 269.7 | 12 x 22.2 | 51.1 | https://a360.co/3uFoQgN |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN16 | 16 | 16 | 15.1 | 13.7 | 12.7 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN40 | 16 | 16 | 16 | 16 | 16 |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# PSI | (BAR) | 232 | (16) | 232 | (16) | 195 | (14) | 175 | (12) | 160 | (11) |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300# PSI | (BAR) | 232 | (16) | 232 | (16) | 232 | (16) | 1232 | (16) | 232 | (16) |
Detailed documentation
Technique
Each MLB Inline sampling valve can be configured according to production specifications and sampling parameters.
MATERIAL
MLB sampling valves are available in stainless steel or in a range of other alloys
CONNECTIONS
MLB Inline samplers are designed to connect flexibly to pipework, offering a wide range of connection options.

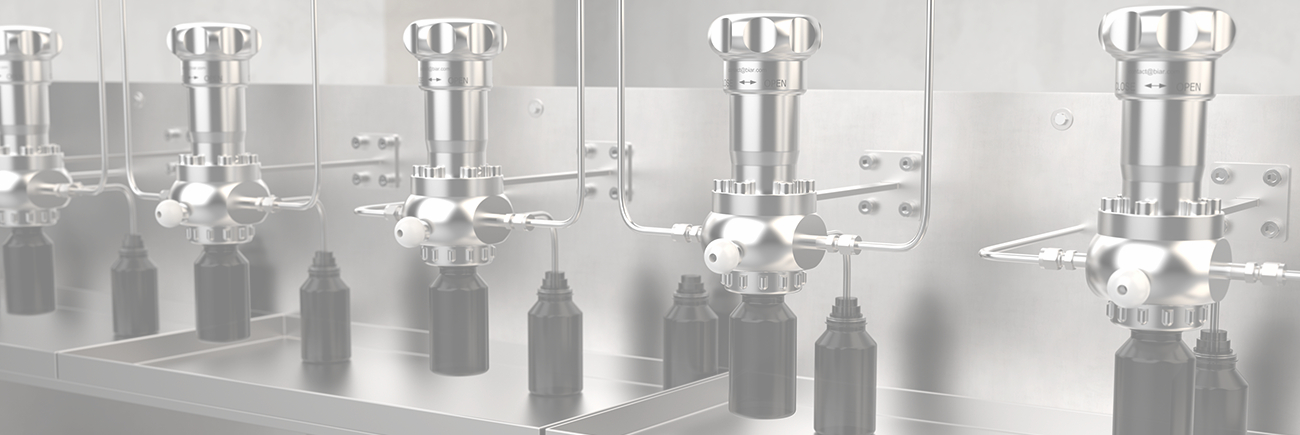

Connections
BIAR inline sampling valves can be connected in a number of ways.
VENT HOLE PRINCIPLE
The vent hole fitted to each MLB sampling valve prevents the bottle from being over-pressurised and exploding.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the MLB samplers can be configured with the nitrogen flushing option.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option

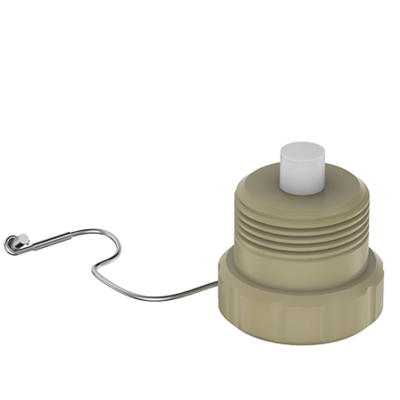

Accessories
MLB In-line samplers are compatible with a wide range of accessories.
Standard product range
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
