VLB
- Inline sampling valve
- With flanges
- Vertical assembly
- Multifunction

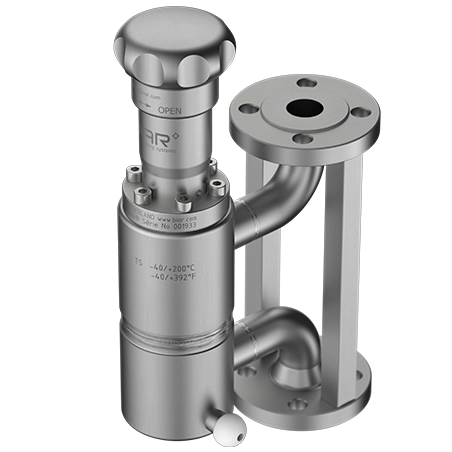

The VLB inline sampling spindle valve enables representative sampling to be carried out easily and safely, without interrupting manufacturing processes. Initially manufactured in stainless steel with a PTFE seal, it is also available in other alloys and seals, depending on specific requirements. In chemical and petrochemical plants, the VLB valve ensures safety when sampling hazardous and toxic liquids such as halogens, Grignard reagents, alkylating agents and concentrated acids. Its unique quick connection system means that different bottles and accessories can be used without changing the sampling system, making it easier to manage and reducing costs. Based on a modular concept (materials, sealing, actuators, connections), the VLB sampling system, also known as PRISEMASSON®, can be adapted to suit different needs and requirements.
TECHNICAL DETAILS OF AN VLB SAMPLING VALVE
Indicative drawing of a standard VLB sampling valve without option with VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 40
- 150
- 300
| NrArticle | DN | L | L1 | h1 | h2 | s | d1 | d2 | D | k | nxd | Kg | stp | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| xxxxxxxx | 15 | 250 | 130 | 179 | 44 | 1.6 | 18.1 | 87 | 95 | 65 | 4x14 | 8.2 | ||
| xxxxxxxx | 20 | 244 | 130 | 179 | 46 | 1.6 | 22.3 | 79.5 | 105 | 75 | 4x14 | 9.1 | ||
| xxxxxxxx | 25 | 263 | 130 | 179 | 52 | 2 | 29.7 | 87 | 115 | 85 | 4x14 | 9.4 | ||
| xxxxxxxx | 32 | 278 | 170 | 179 | 58 | 2 | 38.4 | 87 | 140 | 100 | 4x18 | 10.1 | ||
| xxxxxxxx | 40 | 296 | 170 | 179 | 67 | 2 | 44.3 | 87 | 150 | 110 | 4x18 | 11.4 | ||
| xxxxxxxx | 50 | 329 | 170 | 179 | 67 | 2.6 | 55.1 | 87 | 165 | 125 | 4x18 | 12.9 | ||
| 03281100 | 65 | 403 | 200 | 233 | 93.2 | 2.6 | 70.9 | 113 | 185 | 145 | 4x18 | 16.8 | ||
| 01283101 | 80 | 442 | 200 | 241 | 113 | 2.6 | 83.7 | 113 | 200 | 160 | 8x18 | 19.9 | ||
| 02379300 | 100 | 541 | 250 | 298 | 135 | 2.6 | 109.1 | 141.3 | 220 | 180 | 8x18 | 28.6 |
| NrArticle | DN | L | L1 | h1 | h2 | s | d1 | d2 | D | k | nxd | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02378301 | 15 | 250 | 130 | 128 | 64 | 1,6 | 18.1 | 79.5 | 95 | 65 | 4x14 | 8.2 | https://a360.co/3RagoNU |
| 03281301 | 20 | 244 | 130 | 128 | 80 | 2.6 | 22.3 | 79.5 | 105 | 75 | 4x14 | 9.1 | |
| 01326604 | 25 | 263 | 130 | 128 | 70 | 2 | 29.7 | 87 | 115 | 85 | 4x14 | 9.4 | https://a360.co/46IVJpS |
| 01151801 | 32 | 278 | 170 | 179 | 58 | 2 | 38.4 | 87 | 140 | 100 | 4x18 | 10.1 | https://a360.co/47XNwzl |
| 01443600 | 40 | 296 | 170 | 179 | 67 | 2 | 44.3 | 87 | 150 | 110 | 4x18 | 11.4 | https://a360.co/418QnDd |
| 01443701 | 50 | 329 | 170 | 179 | 67 | 2.6 | 55.1 | 87 | 165 | 125 | 4x18 | 12.9 | |
| 02634800 | 65 | 403 | 200 | 233 | 93 | 2.6 | 70.9 | 113 | 185 | 145 | 8x18 | 16.8 | |
| 04000700 | 80 | 442 | 200 | 241 | 113 | 2.6 | 83.7 | 113 | 200 | 160 | 8x18 | 19.9 | |
| 05185200 | 100 | 541 | 250 | 298 | 135 | 2.6 | 109.1 | 141.3 | 235 | 190 | 8x22 | 28.6 |
| NrArticle | NPS | L | L1 | h1 | h2 | s | d1 | d2 | D | k | nxd | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00852402 | 1/2 | 248 | 130 | 128 | 63 | 1.6 | 17.3 | 79,5 | 89 | 60.3 | 4x15.9 | 7.6 | https://a360.co/3uGHLrA |
| 02693401 | 3/4 | 244 | 130 | 128 | 72 | 2.6 | 22.3 | 79.5 | 98 | 69.8 | 4x15.9 | 8.3 | https://a360.co/3t3NZ4e |
| 00852302 | 1 | 296 | 130 | 128 | 52 | 2 | 29.7 | 87 | 108 | 79.2 | 4x15.7 | 10.1 | https://a360.co/46HSjUn |
| 00906203 | 1 1/2 | 332 | 170 | 179 | 67 | 2 | 44.3 | 87 | 127 | 98.6 | 4x15.7 | 10.7 | https://a360.co/3T7i5hO |
| 00906302 | 2 | 365 | 170 | 179 | 67 | 2.6 | 55.1 | 87 | 152 | 120.7 | 4x19.1 | 12.3 | https://a360.co/3t3XuAl |
| 00925901 | 3 | 478 | 200 | 241 | 113 | 2.6 | 83.7 | 113 | 190 | 152.4 | 4x19.1 | 19.9 | |
| 00967201 | 4 | 599 | 250 | 298 | 135 | 2.6 | 109.1 | 141.3 | 229 | 190.5 | 8x19.1 | 28.6 |
| NrArticle | NPS | L | L1 | h1 | h2 | s | d1 | d2 | D | k | nxd | Kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01790401 | 1/2 | 248 | 130 | 128 | 63 | 1.6 | 17.3 | 79.5 | 95.2 | 69.8 | 4x15,9 | 7.6 | https://a360.co/483ZA1R |
| 04441701 | 3/4 | 244 | 130 | 128 | 72 | 2.6 | 22.3 | 79.5 | 117 | 82.6 | 4x15.9 | 8.3 | https://a360.co/47LFGZV |
| 02380301 | 1 | 296 | 130 | 128 | 52 | 2 | 29.7 | 87 | 108 | 88.9 | 4x19.1 | 10.1 | https://a360.co/3Gqm95p |
| 02380400 | 1 1/2 | 332 | 170 | 179 | 67 | 2 | 44.3 | 87 | 156 | 114.3 | 4x22.4 | 10.7 | https://a360.co/3Ne5LbL |
| 02626901 | 2 | 365 | 170 | 179 | 67 | 2,6 | 55.1 | 87 | 165 | 127 | 8x19.1 | 12.3 | https://a360.co/3NzlMcL |
| 02867800 | 3 | 478 | 200 | 241 | 113 | 2.6 | 83.7 | 113 | 210 | 168.1 | 8x22.4 | 19.9 | |
| 05185300 | 4 | 599 | 250 | 298 | 135 | 2.6 | 109.1 | 141.3 | 254 | 200.2 | 8x22.4 | 28.6 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN16 | 16 | 16 | 15.1 | 13.7 | 12.7 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN16 | 16 | 16 | 16 | 16 | 16 |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# PSI | (BAR) | 232 | (16) | 232 | (16) | 195 | (14) | 175 | (12) | 160 | (11) |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300# PSI | (BAR) | 232 | (16) | 232 | (16) | 232 | (16) | 1232 | (16) | 232 | (16) |
Detailed documentation
Technique
Each MLB Inline sampling valve can be configured according to production specifications and sampling parameters.
Material
VLB sampling valves are available in stainless steel or in a range of other alloys
VENT HOLE PRINCIPLE
The vent hole fitted to each VLB sampling valve prevents pressure surges and explosions.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
When it is necessary to rinse or intertise the bottle, MLB samplers can be configured with the nitrogen rinsing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
ACCESSORIES FOR VLB SAMPLING SYSTEMS
VLB sampling valves are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
