The PE-BAS flangeless butt-weld sampling valve is specifically designed for sampling non-hazardous liquids. It can be used with or without a threaded adaptor, and allows the bottle to be screwed under the sampler when the adaptor is in place, eliminating the need for the operator to hold the flange during the operation. Without the adaptor, the operator simply holds the bottle under the tap when taking the sample. This system is available exclusively in 1/2'' OD format with a manual flying actuator and offers no additional options.
Illustrative drawing of a PE-BAS sampling valve with manual handwheel actuator
| NrArticle | NPS | H | L | L1 | L2 | kg |
|---|---|---|---|---|---|---|
| 03260601 | 1/2 | 110.4 | 114 | 50 | 24 | 0.5 |

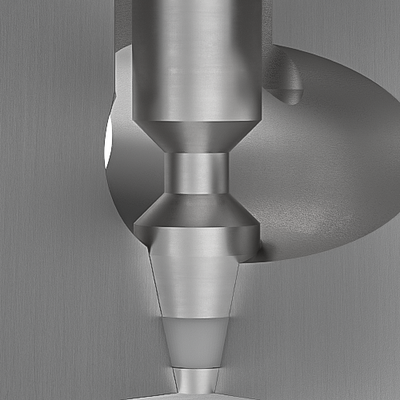

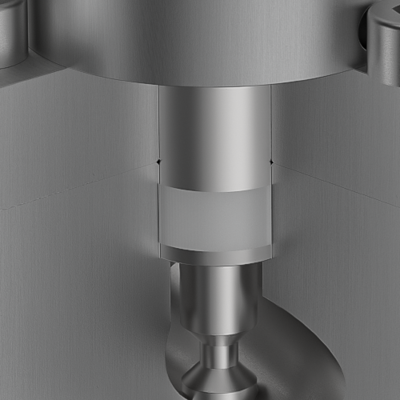

The PE-BAS sampler is available with standard stem gasket and simple stuffing box.
The PE-BAS sampling valve is only available in stainless steel 1.4408 / 316

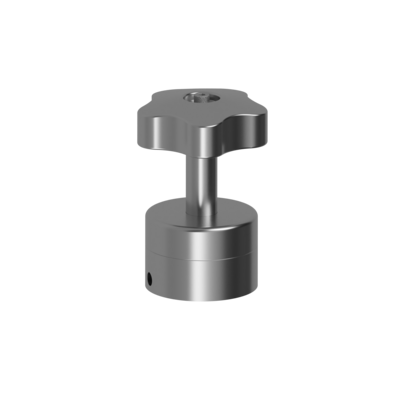

The PE-BAS sampler is operated using the handwheel handwheel.

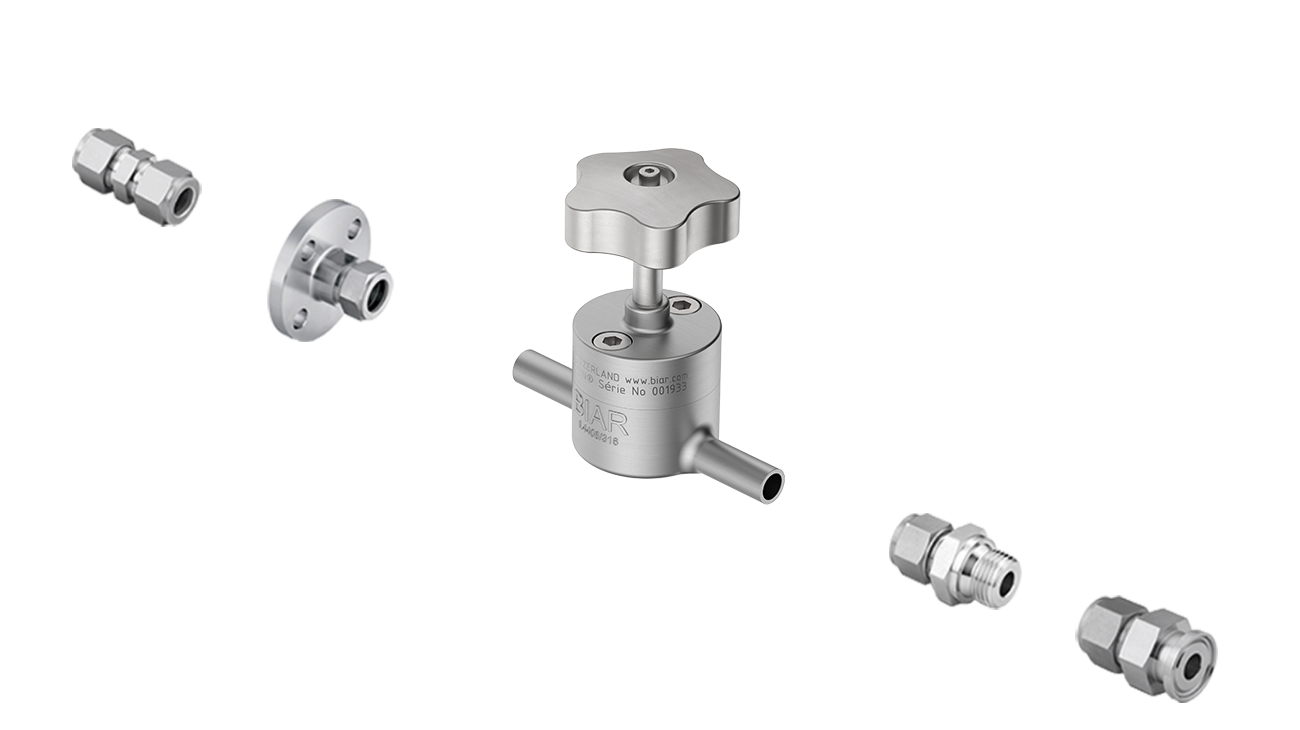

The PE-BAS sampling valve offers exceptional versatility with its ability to adapt to various types of 1/2" connections, including flanges, tubular fittings, unions, weld ends, threaded connections and elbows. Its broad compatibility ensures fast, trouble-free installation, reducing downtime and increasing productivity.
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
