PE-EB
- Inline sampling valve
- Wafer type
- Horizontal assembly
- Traditional
Designed for horizontal assembly, the PE EB sampling valve without flange (wafer type) offers a reliable, practical "no dead zone" solution for representative sampling without interrupting production processes. Initially manufactured in stainless steel with a PTFE seal, it is also available in other alloys and seals, depending on specific requirements. Its integrated adapter for GL45 / GL32 / PP28 bottles prevents deposits and impurities during sampling. In chemical and petrochemical plants, the EB valve ensures safety when sampling hazardous and toxic liquids such as halogens, Grignard reagents, alkylating agents and concentrated acids. Based on a modular concept, the PE-EB sampling system, also known as PRISEMASSON®, can be adapted to suit different requirements (materials, sealing, actuators).
TECHNICAL DETAILS OF AN PE-EB INLINE SAMPLING VALVE

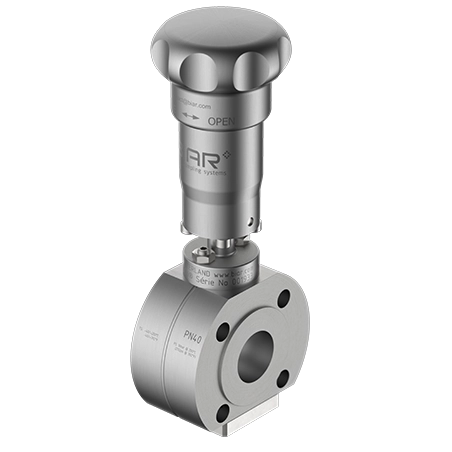

Illustrative drawing of a standard PE-EB sampling valve, without additional options, featuring the VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 40
- 150
- 300
| NrArticle | DN | h1 | h2 | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| xxxxxxxx | 25 | 51.5 | 49 | 36 | 115 | 85 | 4x14 | 5.7 |
| xxxxxxxx | 40 | 70.5 | 56 | 50 | 150 | 110 | 4x18 | 7.9 |
| xxxxxxxx | 50 | 77.5 | 62 | 62 | 165 | 125 | 4x18 | 8.9 |
| NrArticle | DN | h1 | h2 | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| 01317601 | 25 | 51.5 | 49 | 36 | 115 | 85 | 4x14 | 5.7 |
| 01554901 | 40 | 70.5 | 56 | 50 | 150 | 110 | 4x18 | 7.9 |
| 01317501 | 50 | 77.5 | 62 | 62 | 165 | 125 | 4x18 | 8.9 |
| NrArticle | NPS | h1 | h2 | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| 01851500 | 1 | 51.5 | 43 | 36 | 115 | 79.2 | 4x15.7 | 6.3 |
| 02186600 | 1 1/2 | 70.5 | 49,5 | 50 | 150 | 98.6 | 4x15.7 | 7.9 |
| 01583400 | 2 | 77.5 | 56 | 62 | 165 | 120.7 | 4x19.1 | 9 |
| NrArticle | NPS | h1 | h2 | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|
| 01821800 | 1 | 51.5 | 43 | 36 | 115 | 88.9 | 4x19.1 | 6.3 |
| 01821700 | 1 1/2 | 70.5 | 49,5 | 50 | 150 | 114.3 | 4x22.4 | 7.9 |
| xxxxxxxx | 2 | 77.5 | 56 | 62 | 165 | 120.7 | 8x19.1 | 9 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN16 | 16 | 16 | 15.1 | 13.7 | 12.7 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN40 | 16 | 16 | 16 | 16 | 16 |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# PSI | (BAR) | 232 | (16) | 232 | (16) | 195 | (14) | 175 | (12) | 160 | (11) |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300# PSI | (BAR) | 232 | (16) | 232 | (16) | 232 | (16) | 1232 | (16) | 232 | (16) |
Sealing, actuator, bodies of each PE-EB Inline sampling valve can be configured according to production specifications and sampling parameters.
PE-EB body can be designed in various alloys
In its standard version, the PE-EB sampling valves is made from stainless steel. It is also available in other alloys.
Vent hole principle
The venting hole fitted to each xxx sampling valve prevents overpressure and explosions.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
Nitrogen rinsing through the spindle
If bottle rinsing is required, the PE-EB samplers can be configured with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
ACCESSORIES DESIGNED FOR THE PE-EB INLINE SAMPLING VALVES
PE-EB In-line samplers are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
