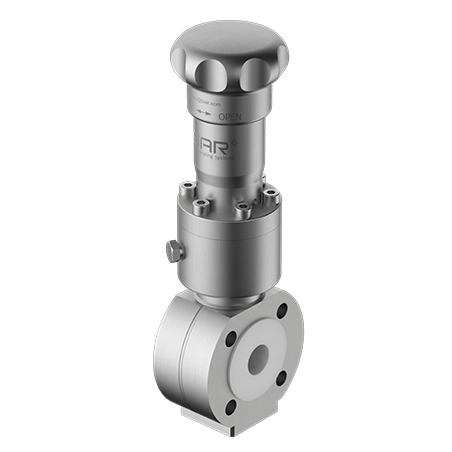

PE‐EB‐P
- PFA lined Inline sampling valve
- Wafer type
- Horizontal assembly
- With built-in adapter
Designed for horizontal assembly, the PE-EB-P sampling valve without flange is a reliable and practical solution for representative sampling without interrupting production processes. Suitable for highly corrosive chemicals, its one-piece design with integrated adapter eliminates all dead zones. This makes it possible to use standard GL45 / GL32 / PP28 bottles. Its design without flange reduces pressure losses and space requirements. The sampling system actuators can be adjusted according to specific needs. The absence of a dead zone on this sampling system gives it a significant advantage in terms of performance.
TECHNICAL DETAILS OF AN PE-EB-P INLINE SAMPLING VALVE
Illustrative drawing of a standard PE-EB-P sampling valve, without additional options, featuring the VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 150
| NrArticle | DN | h1 | h2 | h3 | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| 01036301 | 25 | 123.5 | 48.5 | 20 | 25 | 115 | 85 | 4x13 | 7.8 |
| 03350000 | 40 | 136.8 | 50 | 20 | 40 | 149 | 105 | 4x16 | 9.9 |
| 00891901 | 50 | 156 | 56.5 | 20.4 | 50 | 165 | 125 | 4x18 | 10.8 |
| NrArticle | NPS | h1 | h2 | h3 | d1 | D | k | nxd | Kg | stp |
|---|---|---|---|---|---|---|---|---|---|---|
| 01840900 | 1 | 90.5 | 48.5 | 20 | 25 | 115 | 79.2 | 4x15.7 | 7.8 | |
| 03336500 | 1 1/2 | 86.8 | 50 | 20 | 40 | 149 | 98.4 | 4x15.7 | 9.9 | |
| 02114200 | 2 | 124 | 56.5 | 20.4 | 50 | 165 | 120.7 | 4x19.1 | 10.8 |
| TS (°C) | -20 | 0 | 100 | 150 | 180 max |
|---|---|---|---|---|---|
| PN16 (bar) | 16 | 16 | 14.2 | 12.5 | 11.5 |
| °F | (°C) | -4 | (-20) | 32 | (0) | 212 | (100) | 302 | (150) | 370 | (180)max |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# | psi (bar) | 230 | (15.9) | 230 | (15.9) | 195 | (15.3) | 175 | (12) | 166 (11.5) |
Each PE-EB-P Inline sampling valve can be configured according to production specifications and sampling parameters.
Various sealings possibilities
The PE-EB-P sampling valves can be equipped with different types of sealing
Stem Gasket PFA
PE-EB-P BODY CAN BE DESIGNED IN VARIOUS ALLOYS AND PFA
In its standard version, the PE-EB-P sampling valves are made from Inox 316L and stainless steel. The lining is done in PFA or PFA antistatic.
Vent hole principle
The venting hole fitted to each xxx sampling valve prevents overpressure and explosions.
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.

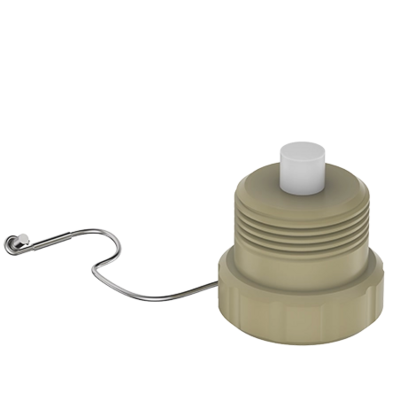

ACCESSORIES DESIGNED FOR THE PE-EB-P INLINE SAMPLING VALVES
All standard bottles can be used with the PE-EB-P sampling systems
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
