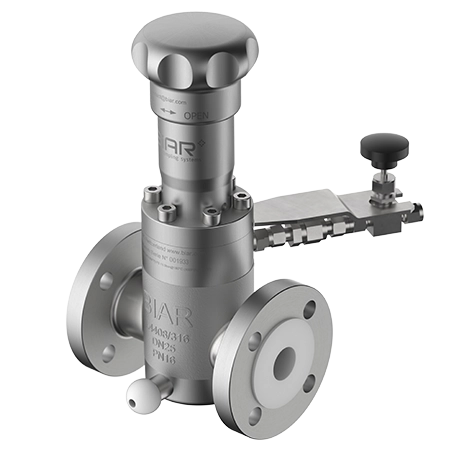

  • PFA line sampling valve with nitrogen rinsing
  • With flanges
  • Horizontal assembly
  • Multifonction
MaterialPFA / PFA antistatic
PressuresPN 16 / 16ANSI 150# / 150#
Temperatures-20°C / 180°C-4°F / 356°F

Suitable for sampling chemicals that are both highly corrosive and highly reactive, the PFA-coated PNI sampling valve with nitrogen rinsing enables representative sampling to be conducted easily and safely without interrupting manufacturing processes. It is designed to be installed on a horizontal line. Nitrogen rinsing through the spindle plays an essential role in inertising and cleaning the bottle, preventing undesirable reactions and eliminating the risk of explosion or ignition, while preserving the purity of the sample. The PNI's one-piece design reduces dead zones and ensures a perfect sealing. Initially manufactured in stainless steel with a pure PFA coating, it is also available in antistatic PFA to meet specific requirements. Its ingenious quick connection system makes it possible to use different bottles and accessories without changing the sampling system. It facilitates management while limiting costs. Based on a modular concept (spindles, actuators), the PLI sampling system, also known as PRISEMASSON®, can be adapted to meet a wide range of needs and requirements. This sampling system offers significant advantages in terms of performance and cost.

TECHNICAL SPECIFICATIONS

Indicative drawing of a PFA-lined PNI sampling valve featuring nitrogen flushing option and fitted with a VMB magic handwheel actuator

Dimensions in mm
Your specificities
Standard
  • DIN
  • ANSI
Class
  • 16
  • 150
NrArticleDNLh1h2d1DknxdKg
xxxxxxxx1513075191595654x148.6
xxxxxxxx201508126.520105754x149.8
0060960425160853225115854x1410.4
xxxxxxxx4020010332401501104x1813.2
009054015023011037.5501651254x1815.3
xxxxxxxx8020312852802001608x1820.8
xxxxxxxx10022914264.51002201808x1824.8
NrArticleNPSLh1h2d1DknxdKg
04794100 1/21278124.7209869.84x15.79.8
xxxxxxxx 3/41307519158960.54x15.98.6
02671500112785252510879.24x15.710.4
011222021 1/2165103324012798.64x15.713.2
03118300217811037.550152120.74x19.115.3
xxxxxxxx32031285280190152.44x19.120.8
xxxxxxxx422914264.5100229190.58x19.124.8
Pressures and temperatures
TS (°C) -20 0 100 150 180 max
PN16 (bar)16 1614.212.511.5
°F (°C) -4 (-20) 32 (0) 212 (100) 302 (150) 370 (180)max
150# psi (bar)230 (15.9)230 (15.9)195 (15.3)175 (12)166 (11.5)

Each PNI Inline sampling valve can be configured according to production specifications and sampling parameters.

Sealings

Stem Gasket PFA

PFA Bellows Seal

Upper sealing

MATERIAL

In their initial configuration, the PNI sampling valves feature standard PFA lining, yet they are also offered with an antistatic PFA alternative

PFA / PFA antistatic

ACTUATORS

PNI sampling valves can be configured with different drives

Magic Hand Wheel - VMB

Pneumatic actuator - CPB

Spring to Close hand lever - RPS

Cooling fins

CONNECTIONS

Les préleveurs d'échantillons en ligne PNI peuvent être assemblés de multiples façons sur les lignes

Connections

BIAR inline sampling valves can be connected in a number of ways.

VENT HOLE PRINCIPLE

The venting hole fitted to each PNI sampling valve prevents overpressure and explosions

Il peut être connecté de différentes manières

Vent hole principle

The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.

NITROGEN RINSING THROUGH THE SPINDLE

PNI samplers incorporate a spindle-based nitrogen flusing feature that enables bottle rinsing and inertization.

NITROGEN RINSING THROUGH THE SPINDLE

If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option

ACCESSORIES

PNI In-line sampling valves are compatible with a wide range of accessories

FAB adapter

Elbow adapter FAV

Splash guard adapter FAD

Bottles

SCB bottle holder

Adjustable plate support SAB

Bottle heat protection

Heat protection box BPB

Heat protection box BPI

Needle adapter ACB - ACY

Revo cabinet RAI

Laboratory supports

Inline sampling valves

BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
