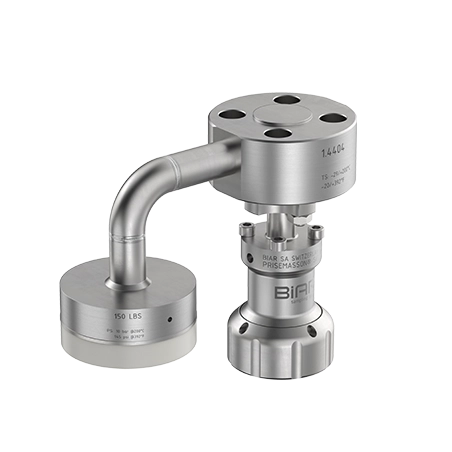

Reactor bottom RAM
- Stainless steel sampler
- For bottom of
- Reactor or tank
- Customisable
Designed for side or bottom mounting, type RAM sampling valves with flange offer a reliable and practical solution for representative sampling without interrupting production processes. Initially manufactured in stainless steel with PTFE seal Designed around a modular concept (materials, seals, actuators), RAM sampling valves, also known as PRISEMASSON®, can be adapted to suit a variety of requirements and needs For liquids that crystallise or form crusts, RAM sampling valves are available in a crust-breaker version with an outgoing needle.
Side mounted RAM sampling valve
Indicative drawing of a RAM type sampling valve with flange for side-mounted reactor/tank designed to take representative samples. The RAM side-mounted sampling valve can also be installed in side tappings on pipes. Depending on the sampling and production parameters, the RAM sampling valve can be modulated in terms of its mantle, body materials and actuators.
Reactor / tank bottom sampling valve type RAM
Indicative diagram of a reactor sampling valve type RAM with flange designed to take representative samples from the bottom of a reactor/tank. Sealings, materials and actuator can be modulated according to sampling and production parameters.
Crust breaking sampling valve type RAM
For liquids that crystallise or form crusts, RAM's crust-breaking sampling valves with outgoing stem enable to take representative samples. The stem breaks the crust at the flange. Below is an indicative diagram of a RAM type sampling valve for side mounted reactors with the crust-breaker option. Also available for reactor / tank bottom valves, this crust-breaking option can be combined with the pneumatic actuator.
Actuators for crust-breaking RAM type sampling valve
The RAM reactor sampling valve with crust-breaking option is combined with the pneumatic actuator. The force of this actuator breaks up any crust that may have formed on the flange.
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
