MLN
- Inline sampling valve with nitrogen rinsing
- With flanges
- Horizontal assembly
- Multifonctional
Suitable for horizontal or vertical lines, the MLN sampling valve, with nitrogen rinsing option, offers a practical and safe solution for taking representative samples without disrupting manufacturing processes. Nitrogen rinsing through the spindle plays an essential role in inertising and cleaning the bottle, preventing undesirable reactions and eliminating the risk of explosion or ignition, while preserving the purity of the sample. Its ingenious quick connection sampling system allows a variety of bottles and accessories to be used without having to replace the sampling system, simplifying management while keeping costs under control. The standard version of this valve is manufactured in stainless steel, but it is also available in other alloys to meet specific requirements. Based on a modular concept, this sampling valve, also known as PRISEMASSON®, offers great flexibility, adapting perfectly to different requirements and needs. It is particularly valuable in critical environments where quality and safety are imperatives.
TECHNICAL DETAILS OF A MLN INLINE SAMPLING VALVE

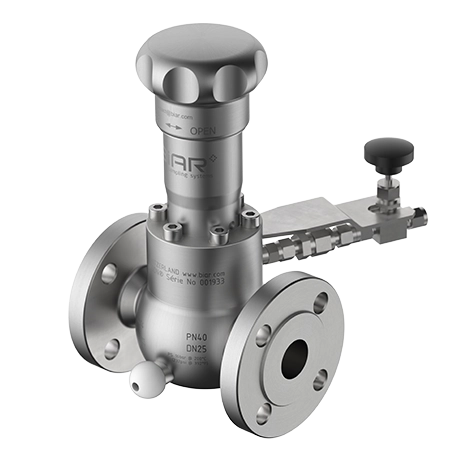

Illustrative drawing of a MLN sampling valve with nitrogen rinsing featuring the VMB magic wheel actuator type
- DIN
- ANSI
- 16
- 40
- 150
- 300
| NrArticle | DN | L | h1 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| xxxxxxxx | 15 | 160 | 27 | 2 | 17.3 | 95 | 65 | 4 x 14 | 7.7 |
| xxxxxxxx | 20 | 160 | 29 | 2.3 | 22.3 | 105 | 75 | 4 x 14 | 8.5 |
| xxxxxxxx | 25 | 160 | 32 | 2.6 | 28.5 | 115 | 85 | 4 x 14 | 9.1 |
| xxxxxxxx | 32 | 180 | 37 | 2.6 | 37.2 | 140 | 100 | 4 x 18 | 10.6 |
| xxxxxxxx | 40 | 200 | 40 | 2.6 | 44.3 | 150 | 110 | 4 x 18 | 11.4 |
| xxxxxxxx | 50 | 230 | 45 | 2.6 | 55.1 | 165 | 125 | 4 x 18 | 12.8 |
| xxxxxxxx | 65 | 290 | 53 | 2.6 | 70.9 | 185 | 145 | 8(4) x 18 | 15.1 |
| xxxxxxxx | 80 | 310 | 59 | 2.6 | 83.7 | 200 | 160 | 8 x 18 | 17.5 |
| xxxxxxxx | 100 | 350 | 72 | 2.6 | 109.1 | 220 | 180 | 8 x 18 | 20 |
| xxxxxxxx | 150 | 480 | 101 | 3 | 162.3 | 285 | 240 | 8 x 22 | 29.9 |
| NrArticle | DN | L | h1 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| 01385502 | 15 | 160 | 27 | 2 | 17.3 | 95 | 65 | 4 x 14 | 7.7 |
| 02703401 | 20 | 160 | 29 | 2.3 | 22.3 | 105 | 75 | 4 x 14 | 8.5 |
| 01296703 | 25 | 160 | 32 | 2.6 | 28.5 | 115 | 85 | 4 x 14 | 9.1 |
| xxxxxxxx | 32 | 180 | 37 | 2.6 | 37.2 | 140 | 100 | 4 x 18 | 10.6 |
| xxxxxxxx | 40 | 200 | 40 | 2.6 | 44.3 | 150 | 110 | 4 x 18 | 11.4 |
| 01507902 | 50 | 230 | 45 | 2.6 | 55.1 | 165 | 125 | 4 x 18 | 12.8 |
| xxxxxxxx | 65 | 290 | 53 | 2.9 | 70.9 | 185 | 145 | 8 x 18 | 16.5 |
| xxxxxxxx | 80 | 310 | 59 | 3.2 | 83.7 | 200 | 160 | 8 x 18 | 18.9 |
| xxxxxxxx | 100 | 350 | 72 | 3.6 | 107.1 | 235 | 190 | 8 x 22 | 24.2 |
| xxxxxxxx | 150 | 480 | 98 | 4.5 | 159.3 | 300 | 250 | 8 x 26 | 41.2 |
| NrArticle | NPS | L | h1 | s | d1 | D | k | nxd | Kg |
|---|---|---|---|---|---|---|---|---|---|
| 00744203 | 1/2 | 160 | 27 | 2 | 17.3 | 89 | 60.5 | 4 x 15,7 | 7.3 |
| 02149201 | 3/4 | 160 | 29 | 2,3 | 22.3 | 98 | 69.9 | 4 x 19,1 | 7.4 |
| 00653903 | 1 | 160 | 32 | 2,6 | 28.5 | 108 | 79.2 | 4 x 15,7 | 8.5 |
| 00988202 | 1 1/2 | 165 | 40 | 2.6 | 43.1 | 127 | 98.6 | 4 x 15,7 | 11.6 |
| 01910901 | 2 | 178 | 45 | 2.9 | 54.5 | 152 | 120.7 | 4 x 19.1 | 13.8 |
| xxxxxxxx | 2 1/2 | 190 | 53 | 2.9 | 70.3 | 178 | 139,7 | 4 x 19.1 | 15.8 |
| 01910102 | 3 | 203 | 59 | 3.2 | 82.5 | 190 | 152.4 | 4 x 19.1 | 18.3 |
| 01000501 | 4 | 229 | 72 | 3.6 | 107 | 229 | 190.5 | 8 x 19.1 | 23.3 |
| xxxxxxxx | 6 | 267 | 98 | 4.5 | 155 | 279 | 241.3 | 8 x 22.2 | 34.8 |
| NrArticle | NPS | L | h1 | s | d1 | D | k | nxd | Poids(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 01497302 | 1/2 | 160 | 27 | 2 | 17.3 | 95 | 66.5 | 4 x 15.9 | 7.6 |
| 02358300 | 3/4 | 160 | 29 | 2.3 | 22.3 | 117 | 82.6 | 4 x 19.1 | 8.6 |
| 02112301 | 1 | 160 | 32 | 2.6 | 28.5 | 124 | 88.9 | 4 x 19.1 | 9.3 |
| 01908600 | 1 1/2 | 165 | 40 | 2.6 | 43.1 | 156 | 114.3 | 4 x 22.2 | 12.4 |
| 05042300 | 2 | 178 | 45 | 2.9 | 54.5 | 165 | 127 | 8 x 19.1 | 13.2 |
| xxxxxxxx | 2 1/2 | 190 | 53 | 2.9 | 70.3 | 190 | 149.4 | 8 x 22.2 | 15.8 |
| 03220200 | 3 | 203 | 59 | 3.2 | 82.5 | 210 | 168.1 | 8 x 22.2 | 22 |
| xxxxxxxx | 4 | 229 | 72 | 3.6 | 107 | 254 | 200.2 | 8 x 22.2 | 30.7 |
| xxxxxxxx | 6 | 267 | 98 | 4.5 | 155 | 318 | 269.7 | 12 x 22.2 | 52.3 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN16 | 16 | 16 | 15.1 | 13.7 | 12.7 |
| °C | -40 | 0 | 100 | 150 | 200 |
|---|---|---|---|---|---|
| PN40 | 16 | 16 | 16 | 16 | 16 |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150# psi | (bar) | 232 | (16) | 232 | (16) | 195 | (14) | 175 | (12) | 160 | (11) |
| °F | (°C) | -20 | (-29) | 0 | (-18) | 200 | (94) | 300 | (149) | 400 | (205) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300# psi | (bar) | 232 | (16) | 232 | (16) | 232 | (16) | 232 | (16) | 232 | (16) |
Each MLN Inline sampling valve can be configured according to production specifications and sampling parameters.
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
Il peut être connecté de différentes manières
Vent hole principle
The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.
NITROGEN RINSING THROUGH THE SPINDLE
The MLN samplers is equipped with with the nitrogen flushing option
NITROGEN RINSING THROUGH THE SPINDLE
If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option
ACCESSORIES DESIGNED FOR THE MLN
MLN In-line sampling valves are compatible with a wide range of accessories
Inline sampling valves
BIAR SA offers inline sampling valves that can be adapted to your sampling and production constraints
