LLN

  • Inline sampling valve with nitrogen rinsing
  • With flanges
  • Lateral assembly
  • Multifunctional
Material1.4404 / 316LPTFE
PressuresPN 16 / 40ANSI 150# / 300#
Temperatures-40°C / 0°C-20°F / 400°F

Developed for lateral assembly, the LLN spindle sampling valve with nitrogen rinsing option enables representative sampling to be carried out easily and safely without interrupting manufacturing processes. Nitrogen rinsing through the spindle plays an essential role in inertising and cleaning the bottle, preventing undesirable reactions and eliminating the risk of explosion or ignition, while preserving the purity of the sample. Its ingenious quick connection sampling system allows a variety of bottles and accessories to be used without having to replace the sampling system, simplifying management while keeping costs under control. Initially manufactured in stainless steel with PTFE sealing, it is also available in other alloys and seals, depending on specific needs. Based on a modular concept (materials, sealing, actuators, connections), the LLN sampling system, also known as PRISEMASSON®, can be adapted to suit different needs and requirements.

TECHNICAL DETAILS OF A LLN INLINE SAMPLING VALVE

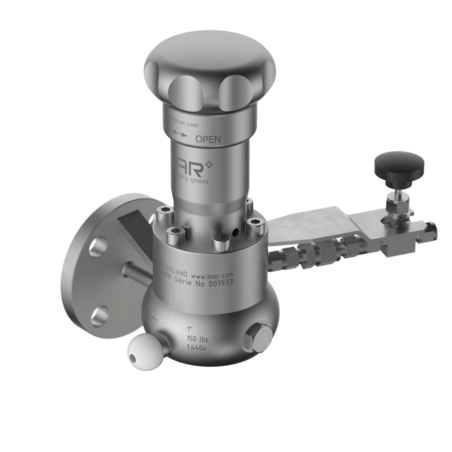

Illustrative drawing of a LLN sampling valve, with nitrogen rinsing, featuring the VMB magic wheel actuator type

Dimensions in mm
Your specificities
Standard
  • DIN
  • ANSI
Class
  • 16
  • 40
  • 150
  • 300
NrArticleDNl-1l-2DknxdKg
xxxxxxxx15100 (i)100 (i)95654x146.9
xxxxxxxx20100 (i)100 (i)105754x147.2
xxxxxxxx25100 (i)100 (i)115854x147.3
xxxxxxxx32100 (i)100 (i)1401004x187.4
xxxxxxxx40100 (i)100 (i)1501104x187.5
xxxxxxxx50100 (i)100 (i)1651254x189.3
xxxxxxxx65100 (i)100 (i)1851458(4)x189.9
0201690080100 (i)100 (i)2001608x1811.0
xxxxxxxx100100 (i)100 (i)2201808x1813.1
NrArticleDNl-1l-2DknxdKg
0362700015100 (i)100 (i)95654x146.9
xxxxxxxx20100 (i)100 (i)105754x147.2
xxxxxxxx25100 (i)100 (i)115854x147.3
xxxxxxxx32100 (i)100 (i)1401004x187.4
xxxxxxxx40100 (i)100 (i)1501104x187.5
xxxxxxxx50100 (i)100 (i)1651254x189.3
xxxxxxxx65100 (i)100 (i)1851458x189.9
xxxxxxxx80100 (i)100 (i)2001608x1811.0
xxxxxxxx100100 (i)100 (i)2351908x2213.1
NrArticleNPSl-1l-2DknxdKg
xxxxxxxx 1/2100 (i)100 (i)8960.54x15.76.3
xxxxxxxx 3/4100 (i)100 (i)9869.64x15.76.7
027978021100 (i)100 (i)10879.24x15.76.9
xxxxxxxx1 1/4100 (i)100 (i)11788.94x15.77.4
xxxxxxxx1 1/2100 (i)100 (i)12798.64x15.77.6
xxxxxxxx2100 (i)100 (i)1521214x19,19.1
xxxxxxxx2 1/2100 (i)100 (i)178139.74x19,19.9
xxxxxxxx3100 (i)100 (i)190152.44x19,111.0
xxxxxxxx4100 (i)100 (i)229190.58x19,113.1
NrArticleNPSl-1l-2DknxdKg
xxxxxxxx 1/2100 (i)100 (i)9566.64x15.76.3
xxxxxxxx 3/4100 (i)100 (i)11782.64x19,16.7
xxxxxxxx1100 (i)100 (i)12488.94x19,16.9
xxxxxxxx1 1/4100 (i)100 (i)13398.64x19,17.7
xxxxxxxx1 1/2100 (i)100 (i)156114.34x22,47.6
xxxxxxxx2100 (i)100 (i)1651278x19,19.1
xxxxxxxx2 1/2100 (i)100 (i)190149.48x22,410.1
xxxxxxxx3100 (i)100 (i)210168.18x22,411.0
xxxxxxxx4100 (i)100 (i)254200.28x22,413.1
Pressures and temperatures
°C -40 0 100 150 200
PN16161615.113.712.7
°C -40 0 100 150 200
PN401616161616
°F (°C) -20 (-29) 0 (-18) 200 (94) 300 (149) 400 (205)
150# psi(bar)232(16)232(16)195(14)175(12)160(11)
°F (°C) -20 (-29) 0 (-18) 200 (94) 300 (149) 400 (205)
300# psi(bar)232(16)232(16)232(16)232(16)232(16)

Each LLN Inline sampling valve can be configured according to production specifications and sampling parameters.

Various sealings possibilities

The LLN sampling valves can be equipped with various types of sealing

Standard Stem Gasket

Simple stuffing box

HP Stem Gasket

Double Stuffing Box

Stellite Stem Gasket

Bellows Seal

Actuator options for the LLN sampling system

LLN sampling valves can be configured with different drives

Magic Hand Wheel - VMB

Pneumatic actuator - CPB

Spring to Close hand lever - RPS

Cooling fins

CONNECTIONS

Les préleveurs d'échantillons en ligne LLN peuvent être connectés de multiples façons.

Connections

BIAR inline sampling valves can be connected in a number of ways.

Vent hole principle

The venting hole fitted to each VLN sampling valve prevents overpressure and explosions.

Il peut être connecté de différentes manières

Vent hole principle

The vent hole in our sampling systems prevents overpressure in the container and allows for the recovery of toxic gases.

NITROGEN RINSING THROUGH THE SPINDLE

LLN samplers are outfitted with a nitrogen rinsing feature, enabling the thorough rinsing or inerting of any bottle through the stem gasket

NITROGEN RINSING THROUGH THE SPINDLE

If bottle rinsing is required, the ECB samplers can be configured with the nitrogen flushing option

ACCESSORIES DESIGNED FOR THE LLN

LLN In-line sampling valves are compatible with a wide range of accessories

FAB adapter

Splash guard adapter FAD

Bottles

Bag holder adapter

SCB bottle holder

Adjustable plate support SAB

Bottle heat protection

Heat protection box BPB

Heat protection box BPI

Safety cabinets

Needle adapter ACB - ACY

Revo cabinet RAI
